BackVertical Instal lFoam Bladder Tank

1) Capacity :300L-5000L
2) Rated working pressure: 0.6-1.2MPa
3) Strength & sealing test: 1.5MPa & 1.32MPa
4) Pressure loss: ＜＝0.2MPa(@Max. flow)
5) Material: carbon steel
6) Thickness: 0.6mm
7) Mixing ratio: 3% or 6%
8) Installation direction: vertical
9) With propotioner, without foam liquid

Details

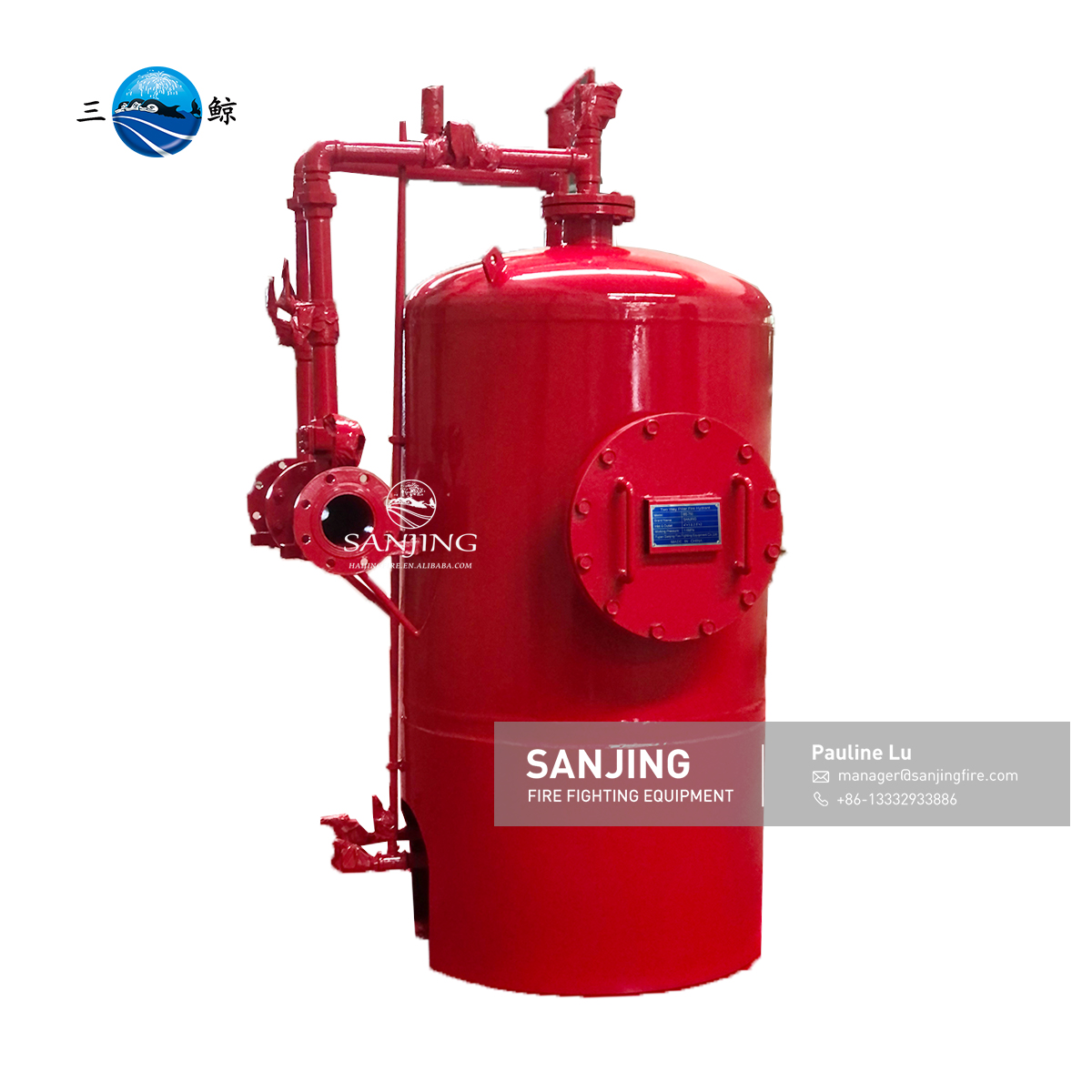

SANJING Vertical Foam Bladder Tank is a component of a balanced pressure proportioning system that includes a pressure-rated tank with an internal elastomeric bladder for foam concentrate storage. Upon system actuation, incoming water applies pressure to the concentrate in the bladder, which supplies pressurized concentrate to the proportioning device. The device meters the foam concentrate into the fire water line, creating foam solution. The solution is then piped to the discharge devices protecting the hazard area.
