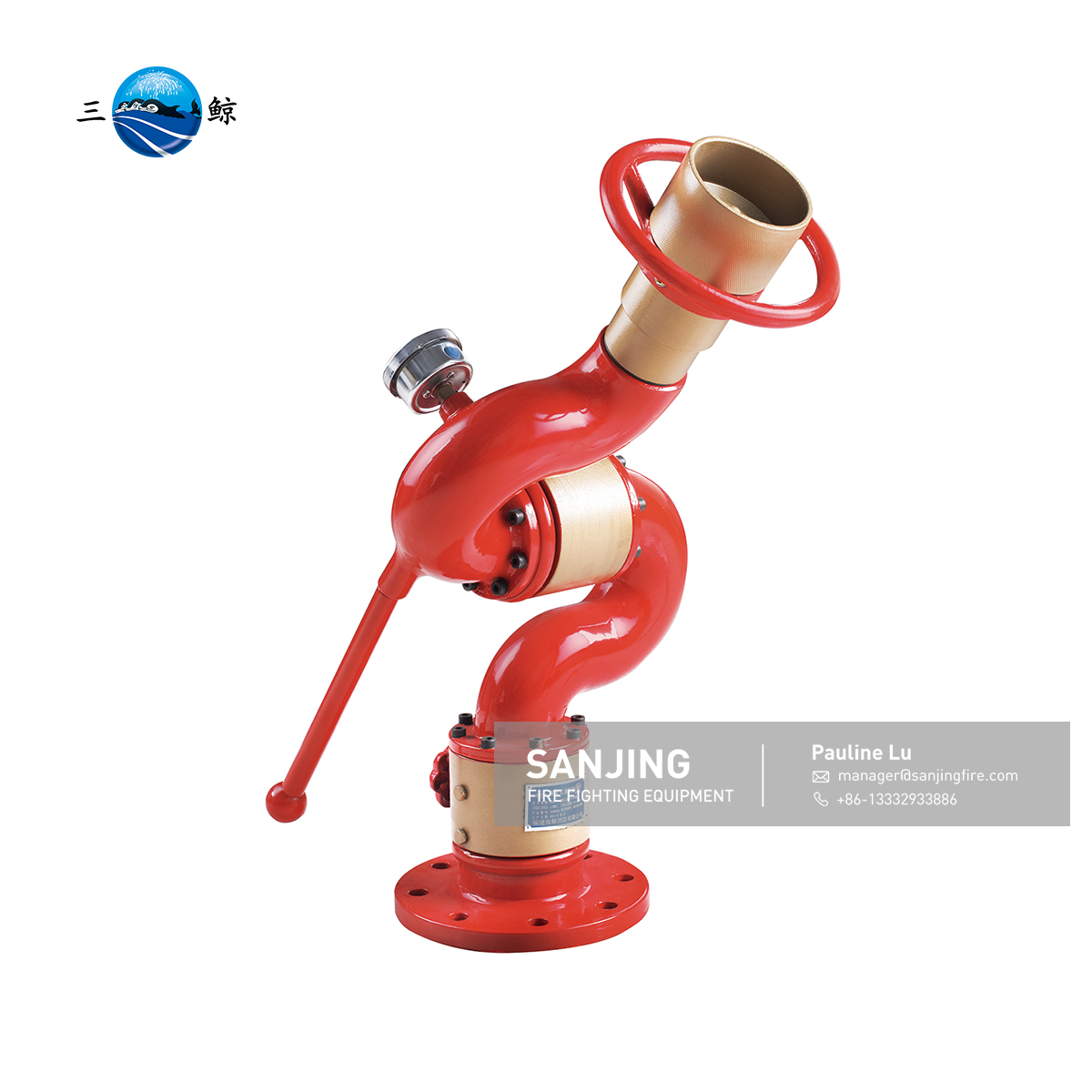

BackFixed Water Fire Monitor, Manuel Operating

1) Inlet flange: DN100
2) Flange holes match to: PN16 / BS4504 / EN1092 / DIN2502
3) Rated working pressure: 0.6MPa
4) Working pressure range: 0.6~1.2MPa
5) Material: ductile cast iron body, aluminium nozzle
6) Flow per second: 20L/s, 30L/s, 40L/s
7) Horizontal & vertical adjustment angle: 0 ~ 360° & -70° ~ +70°
8) Ejection distance: 20L/s＞＝48m；30L/s＞＝55m；40L/s＞＝60m

Details

The fixed fire monitor is the latest self-designed by our company absorbing the advanced technology of domestic and foreign fire monitors. The fixed fire monitor has complete functions, long range, simple structure, novelty, stable and reliable performance, flexible operation and convenient maintenance.
The gun body can be rotated horizontally and pitched, and can be reliably positioned and locked to facilitate the evacuation of firefighters from the fire site and protect the personal safety of firefighters. The gun has two spraying functions: direct current and blooming. When spraying blooming water mist, it can be used for cooling and fire fighting. This product is suitable for equipping heavy-duty fire trucks and fire-fighting ships, as well as fixed fire-fighting equipment for industrial and mining enterprises, warehouses, oil fields, storage tanks, etc.
